DOME PUMP SYSTEM
Data & Requirements
Technical requirements and installation guidelines for the Dome pump system.
The SmartMist Dome System
Precision Fire Suppression. Discreet. Intelligent. Effective.
Revolutionary mist technology that delivers powerful fire protection with less water, less damage and maximum reliability.
.png)
Building Control Compliant
Tested to BS8458 for 80m³
Manufactured in the UK
No Water Tank Required
Experience the Future of Fire Suppression
Elevating Fire Safety with the New Dome System
SmartMist is at the forefront of fire suppression innovation. The Dome system is designed to redefine standards in domestic and commercial spaces, combining cutting-edge mist technology with elegant design and smart monitoring.

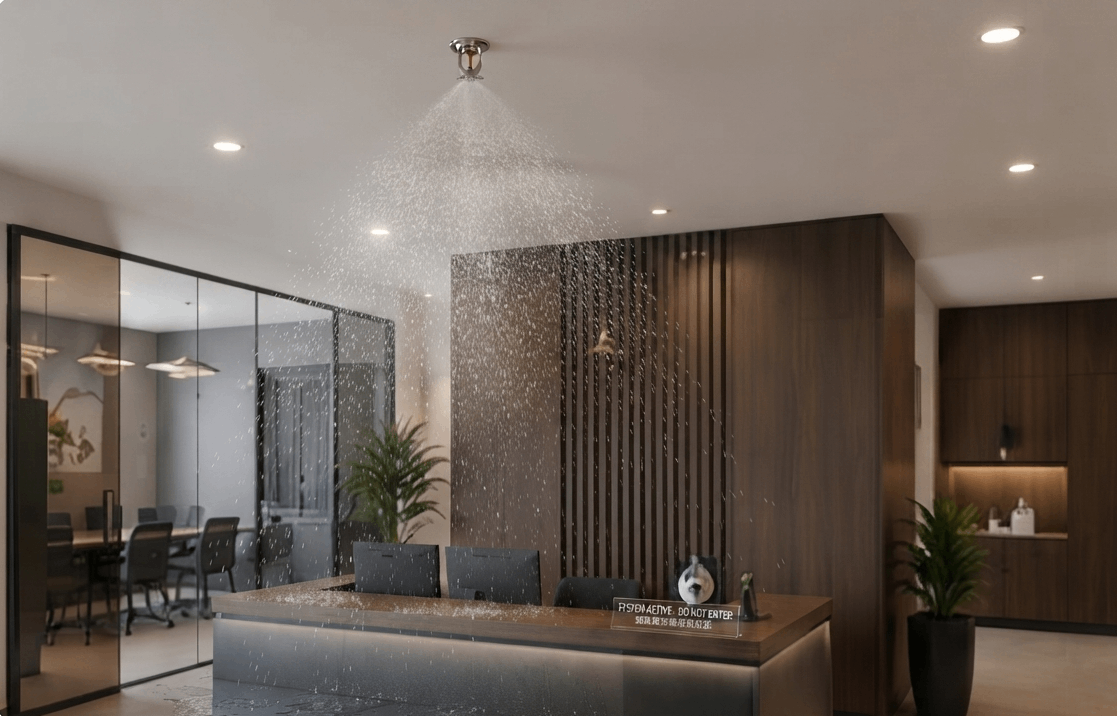

The Wonders of Mist Technology
Superior Suppression Performance
Mist technology uses fine water droplets to suppress fires more effectively than traditional systems.
Environmentally Friendly
Our system uses significantly less water, reducing environmental impact and minimising water damage.
Efficient and Reliable
Proven to control fires quickly, helping to protect lives and property.
Unmatched Features and Compliance
.png)
Text Messaging Notifications
Stay informed with real-time alerts.
Automatic Cut-Off
Conserve water with an automatic shut-off after 35 minutes.
Service Notifications
Receive reminders for scheduled maintenance.
Priority Demand Function
Directs all water to the system during a fire, ensuring maximum suppression.
No Water Tank Required
Seamlessly integrates with existing water supplies, simplifying installation and maintenance.
Versatile Applications
Perfect for a Variety of Settings
.png)
Private Homes
Hotels
HMOs (Houses in Multiple Occupation)
Barn Conversions
Multiple Apartments
Residential and Nursing Homes
Comprehensive Certification and Approval
.png)
UKAS Accredited
Passed the rigorous FPAS UKAS accredited BS 8458 Annex C test.
.png)
Building Control Approved
Fully compliant with the latest building regulations.
British Made
Proudly designed and manufactured in the UK, ensuring top-quality craftsmanship.
ISO Standards
Manufactured under stringent ISO quality management standards.

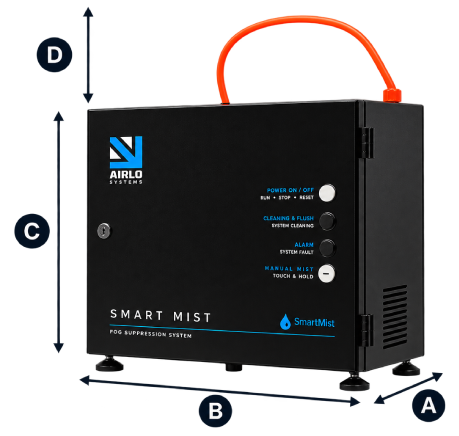

Pump System Requirements
Pump
Door opens right hand side, please allow for swing room
Pump Weight – appx. 52kg
Length A – Depth – 270mm
Length C – Height – 700mm
Length B – Width – 600mm
Length D – Height Above Box –
450mm Minimum
If mounting the system on a shelf, please ensure that it is designed to withstand a minimum of 55kg and must be adequate for the entire footprint of the pump system. It must remain fully accessible for servicing works throughout its life and should not be shielded behind any bulkhead.
.png)
Electrical
.png)
Type C Breaker
.png)
20 Amp Rotary Switch
20Amp 'Type C' breaker to be installed on an independent MCB.
This can be adjacent to, but not switched from, the main Main Consumer Board.
2.5mm dedicated FP200 or Similar spec fire-rated cable to be used from consumer unit to 20amp 2-pole lockable rotary isolator switch.
Rotary Isolator Switch must be installed within 1m of final agreed location.
Must come from a constant power supply, and this must not be used with pre-payment meters.
For areas prone to power loss or using prepaid electric meters, we highly recommend installing our 30-minute Uninterruptible Power Supply (UPS) system to ensure continuous operation of the Dome system.
Plumbing
15mm cold water mains feed – must be the first branch immediately after the incoming water supply enters the building.
Must be terminated with a 15mm compression fitting lever ball valve.
%20(1).png)
15mm Compression Lever Valve
%20(1).png)
Normally Open PDV
Note -
If incoming water supply is over 12l/min but under 37l/min, you must provide a priority demand valve (pdv). The pdv must be a 230v (mains powered), normally open (no) type valve. This must be installed after the branch for the water mist feed. This must be wired back to the same location as the electrical feed, using a dedicated 1.5mm fp200 or similar spec fire-rated cabling.
